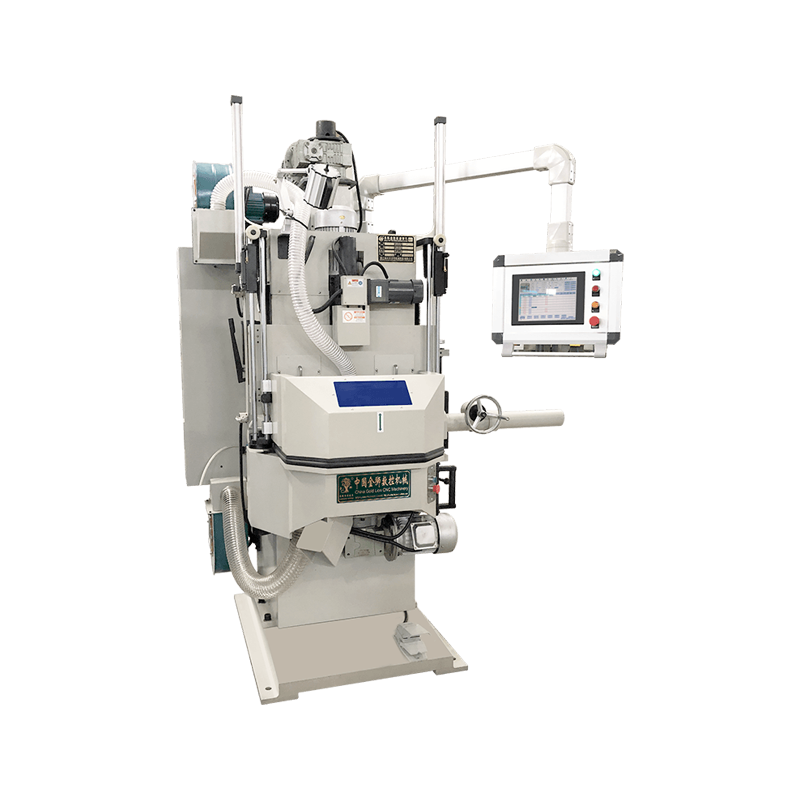

Single Tray(Double Tray)CNC Spring Grinding Machine MK-6

Model: MK-6

Machine Features

MK-6 new double tray(or single tray) CNC spring grinding machine is adopt to use the clutch to change tray, with Japan's Mitsubishi control system to control grinding process on both vertical ends of springs simultaneously. The grinding head feeds and returns automatically, and the feeding speed will be adjusted automatically depend on different specifications of springs and also have automatic compensation function after grinding wheels wear; the machine can use two grinding methods: manual feed and automatic feed, which is suitable for grinding high precision springs. The main axis motor is external, so its maintenance is convenient; The automatic protective door is safe and reliable.

Contact Us Video
Description

Specifcation

Model
MK-6
Steel wire Diameter Of Grinding Spring
0.8-6
Diameter Of Grinding Spring
≤80
Hieght Of Grinding Spring
8-180
Grinding wWheel Size(outside×height)
400x50
N/Min Grinding Head Speed
1430
Machine Size(length ×width ×height)
1350x1780×2200
Net Weight Of The Machine
1850
Power
Three phase 380V.AC.50Hz
Motor Power(motor 5pcs)
11.57



Company
Company Company Profile

CHUANGYU MECHANICAL TECHNOLOGY CO.,LTD

As a famous OEM/ODM Single Tray(Double Tray)CNC Spring Grinding Machine MK-6 suppliers and wholesale Single Tray(Double Tray)CNC Spring Grinding Machine MK-6 company, Zhejiang Chuangyu Machinery Technology Co., Ltd. is currently a domestic professional manufacturer integrating R&D, production and sales of computer spring machines, a national high-tech enterprise, a drafting unit of the Chinese spring machinery industry standard, and a director unit of the China Spring Professional Association. The models cover more than 40 different types of spring machine equipment between 0.1-25mm, including computer compression spring machines, computer universal spring machines, camless machines, computer spring grinding machines, tempering furnaces, Single Tray(Double Tray)CNC Spring Grinding Machine MK-6 and other products. The company has introduced multi-axis technology from Germany and Japan, and has cooperated with universities and research institutes to develop more than 30 patented technologies, continuously improving the degree of automation, and allowing users to make high-precision Single Tray(Double Tray)CNC Spring Grinding Machine MK-6 with simple operations as much as possible, even when winding complex springs. One-time forming, no additional processing is required. Its products have the characteristics of fast adjustment, stable and reliable, and simple operation. The company has a number of advanced automated production lines, and the accuracy that can be achieved in the production process is at the first-class level in the industry. Efficient, fast, and orderly modern management, to minimize engineering errors, to ensure the excellent quality of Single Tray(Double Tray)CNC Spring Grinding Machine MK-6 , and to provide customers with satisfactory services.
At present, our wholesale Single Tray(Double Tray)CNC Spring Grinding Machine MK-6 are mainly exported to dozens of countries such as the United States, Russia, South Korea, Turkey, India, Brazil, Mexico, Argentina, Malaysia, Vietnam, South Africa, etc. Many of the cooperative customers are the largest local spring manufacturers. The company will always adhere to customer-centric, pursue the perfect combination of character and technology, and work together to innovate and create brilliance together.
