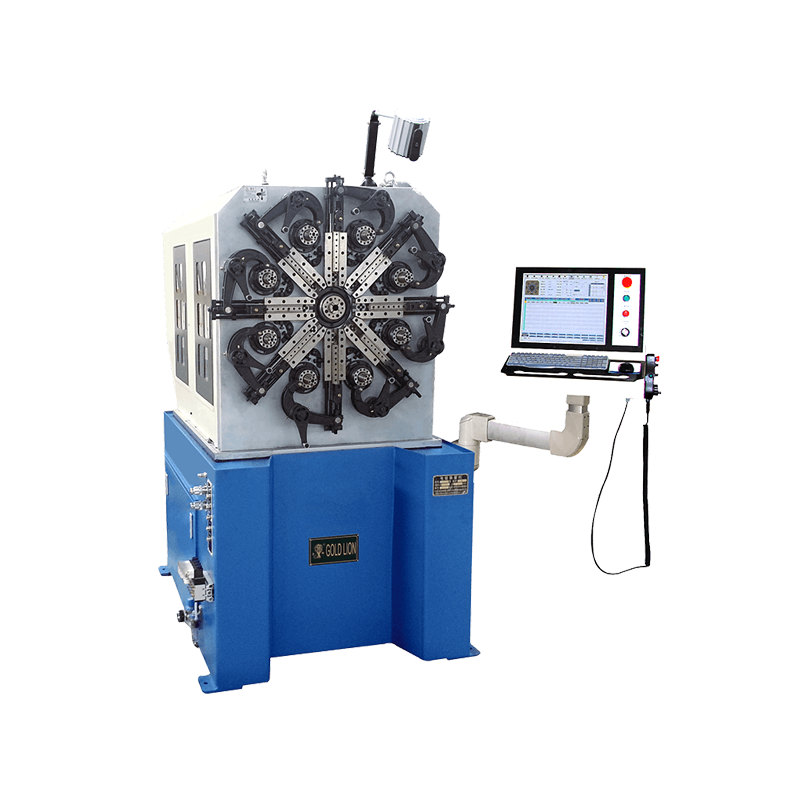

CNC Wire Rotating Spring Forming Machine

Model: CNC626A Type


Machine Features

 CNC626A wire rotating spirng forming machine adopts CNC control system and five sets of servo motors. The cam axis, feeding axis, quill rotary axis, wire rotation axis and auxiliary axis, five axis are interconnected when running. Eight-position working continuously, standard five-axis.(servo spinner and second hook station can be added) It is suitable for making various compression spring, square spring, scoll spring, tower spring, double torsion spring, flat spring and such difficult abnormity springs. Greatly enlarge the spring processing range. The machine has tracking detection, if there is subquality product, the machine will automatically stop.

Contact Us Video
Description

Specifcation

Model
CNC626A
Wire Diameter(mm)
0.4-2.6
Outside Diameter(mm)
Max50
Feeding Length(mm
0.01-9999.99
Wire Feed Speed
0-130m/min
Can Setting Value
0.1"-359.9"
Wire Feed Servo Moter
2KW
Cam Servo
2.7Kw
Zaxis Servo
1KW
Wire Rotate Servo
2Kw
Spinner Servo
0.4KW
Power AC
380V-10%V 50Hz
Dimensions(LxWXH) (mm)
1500x1400x1650
Machine Weight
1300

The feeding system are equipped horizontally at the rotation system of the machine, two rollers as one group.
CNC626A has two group feeding rollers. Different wire size need different feeding rollers. The computer control the feeding system, the moving unit is 0.01mm, the maximum moving length is 99999.99 unit. Adopt the car engine lubricating method inside. The feature: abrasion-
proof, minimum noise, high precision synchronism with the control system.
