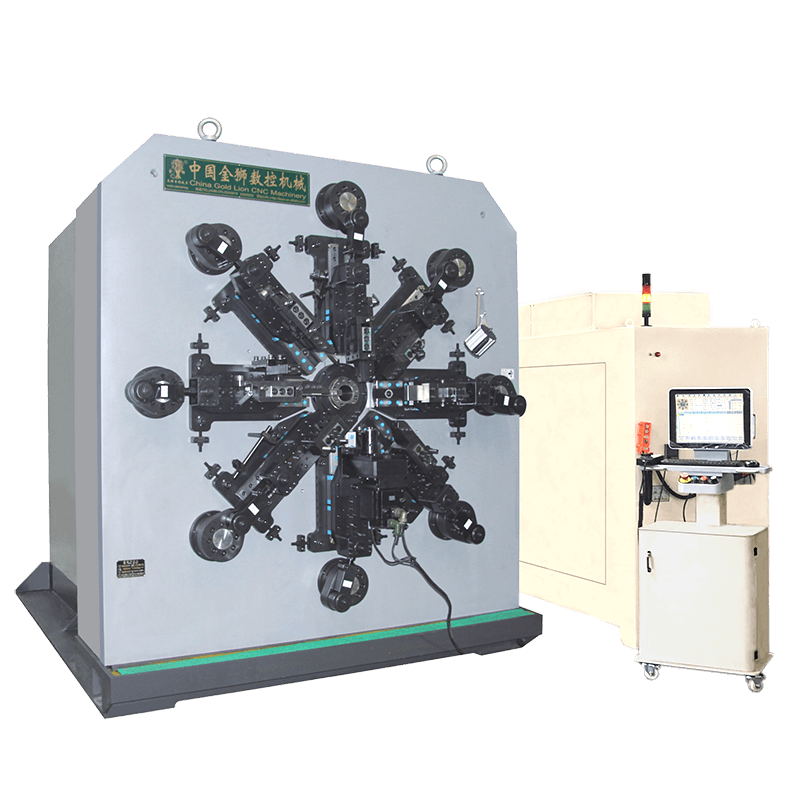

CNC Spring Rotating Forming Machine

Model:CNC12100

Machine Features

CNC12100 cam-less 12-axis CNC spring wire forming machine adopts twelve sets of servo motors, unique cam-

less and non-swing arm design,8 axis slide seat(standard linear guide),1 wire feed axis,1 quill axis,1 thread rotating axis,1 servo spinner axis (can add more axis: transverse moving cutter set, tension spring gripper). It can produce various compression spring, rectangular spring, scroll spring, tower spring, double torsion spring, snake spring, car seat spring, flat spring and other kinds of special-shaped spring, precise and accurate, adjust machine quickly, stable and reliable. Control system matching remote Internet interface, automatic imaging detection and alarm, easy to understand the program software, so that new workers can master programming easily. Hydraulic scissors are available.

Contact Us Video
Description

Specifcation

Model
CNC12100
wire Diameter(mm)
4.0-10.0
outside Diameter(mm)
Max-150
Feeding Length(mm)
0.01-9999.99
wire Feed Speed
0-70m/min
wire Feed Cam
5
Wire Feed Servo Moter
25KW
Sliding Seat Servo
5.5KWx8
zaxis Servo
2.7Kw
Wire Rotate Servo
7Kw
Spinner Servo
2.7KW
Power AC
380v-10%V 50Hz
Dimensions(LxWxH)(mm)
3800x3000×2450
Machine Weight
20000
