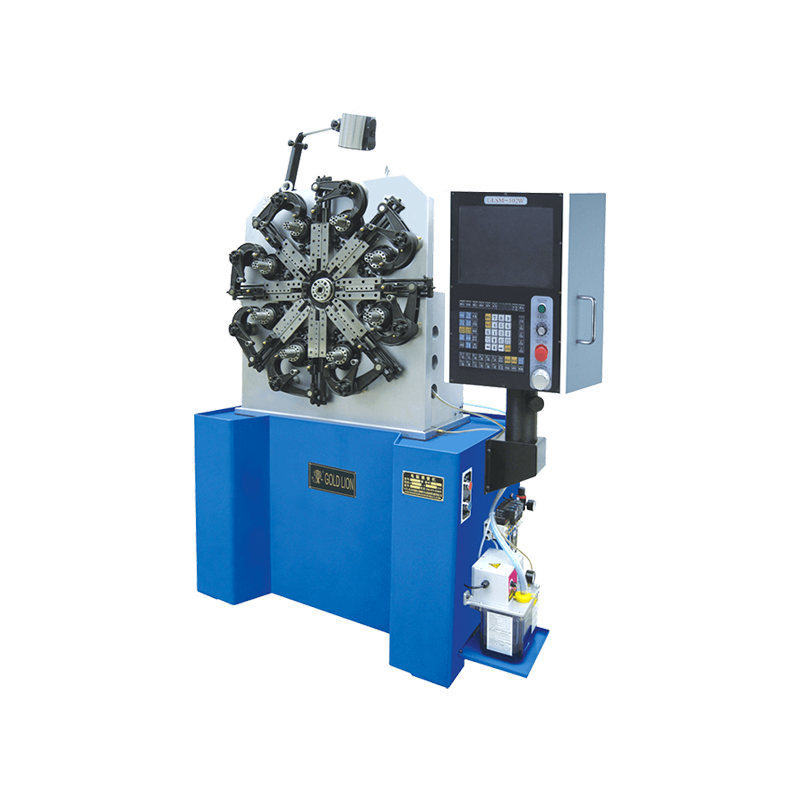

CNC Spring Making Machine

Model: CNC626Type

Machine Features

CNC626 spring forming machine adopts CNC control system and servo motor, cam axis, feeding axis, quill rotary axis and auxiliary axis. The four axis are interconnected when running. Eight-position working continuously, standard four axis.(servo spinner and second hook station can be added) It is suitable for making various compression spring, square spring, scoll spring, tower spring, double torsion spring, flat spring and such a bnormity springs. The machine has tracking detection, if there is subquality product, the machine will automatically stop.

Contact Us Video
Description

Specifcation

Model CNC626
Wire Diameter(mm) 0.2-2.6
Outside Dliameter(mm) Max@50
Feeding Length(mm) 0.01-999.99
Wire Feed Speed 0-130m/min
Can Setting value 0.1~-359.9"
Wire Feed Servo Moter 2.7KW
Cam Servo 2.7KWw
Zaxis Servo 1KW
PowerAC 380V10%V 5OHz
Dimensions(LXWxH)(mm) 1360X750X1800
Machine Weight 850
Company
Company Company Profile

CHUANGYU MECHANICAL TECHNOLOGY CO.,LTD

As a famous OEM/ODM CNC Spring Making Machine suppliers and wholesale CNC Spring Making Machine company, Zhejiang Chuangyu Machinery Technology Co., Ltd. is currently a domestic professional manufacturer integrating R&D, production and sales of computer spring machines, a national high-tech enterprise, a drafting unit of the Chinese spring machinery industry standard, and a director unit of the China Spring Professional Association. The models cover more than 40 different types of spring machine equipment between 0.1-25mm, including computer compression spring machines, computer universal spring machines, camless machines, computer spring grinding machines, tempering furnaces, CNC Spring Making Machine and other products. The company has introduced multi-axis technology from Germany and Japan, and has cooperated with universities and research institutes to develop more than 30 patented technologies, continuously improving the degree of automation, and allowing users to make high-precision CNC Spring Making Machine with simple operations as much as possible, even when winding complex springs. One-time forming, no additional processing is required. Its products have the characteristics of fast adjustment, stable and reliable, and simple operation. The company has a number of advanced automated production lines, and the accuracy that can be achieved in the production process is at the first-class level in the industry. Efficient, fast, and orderly modern management, to minimize engineering errors, to ensure the excellent quality of CNC Spring Making Machine, and to provide customers with satisfactory services.
At present, our wholesale CNC Spring Making Machine are mainly exported to dozens of countries such as the United States, Russia, South Korea, Turkey, India, Brazil, Mexico, Argentina, Malaysia, Vietnam, South Africa, etc. Many of the cooperative customers are the largest local spring manufacturers. The company will always adhere to customer-centric, pursue the perfect combination of character and technology, and work together to innovate and create brilliance together.
