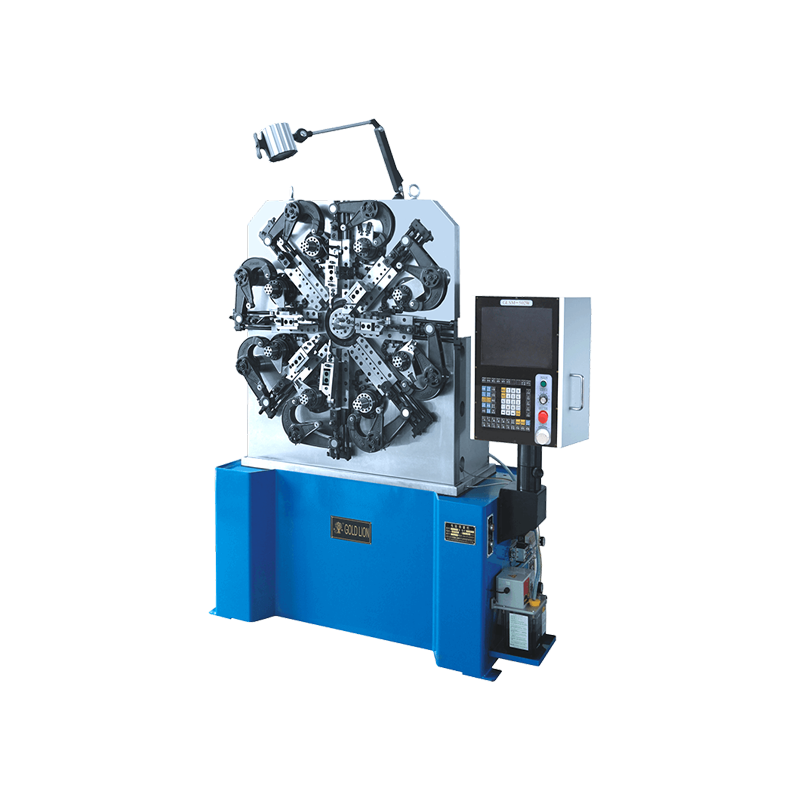

CNC Spring Making Machine

Model: CNC642Type




Machine Features

CNC642 spring forming machine adopts CNC control system and servo motor, cam axis, feeding axis, quill rotary axis and auxiliary axis. The four axis are interconnected when running. Eight-

position working continuously, standard four axis.(servo spinner and second hook station can be added) It is suitable for making various compression spring, square spring, scoll spring, tower spring, double torsion spring, flat spring and such abnormity springs. The machine has tracking detection, if there is subquality product, the machine will automatically stop.

Contact Us Video
Description

Specifcation

Model
CNC642
Wire Diamatar(mm)
1.4-4.2
Outside Diameter(mm)
Max@70
Foeding Langth(mm)
0.01-9999.99
Wire Feed Speed
0-7om'min
Can Setting value
0.1" -359.9"
Wire Feed Sero Moter
5.5KW
Cam Serwo
7Kw
Zaxis Servo
1.5KW
PowerAc
380V-10%V 50Hz
Dimensions(LXWxH) (mm)
1680x1200x2250
Machine wWeight
1800

The feeding system are equipped horizontally at theback of the machine, two rollers as one group.

CNC642 has three group feeding rollers. Different wire size need different feeding rollers. The computer control the feeding system, the moving unit is 0.01mm, the maximum moving length is 99999.99 unit. Adopt the car engine lubricating method inside. The feature: abrasion-proof, minimum noise, high precision synchronism with the control system.
