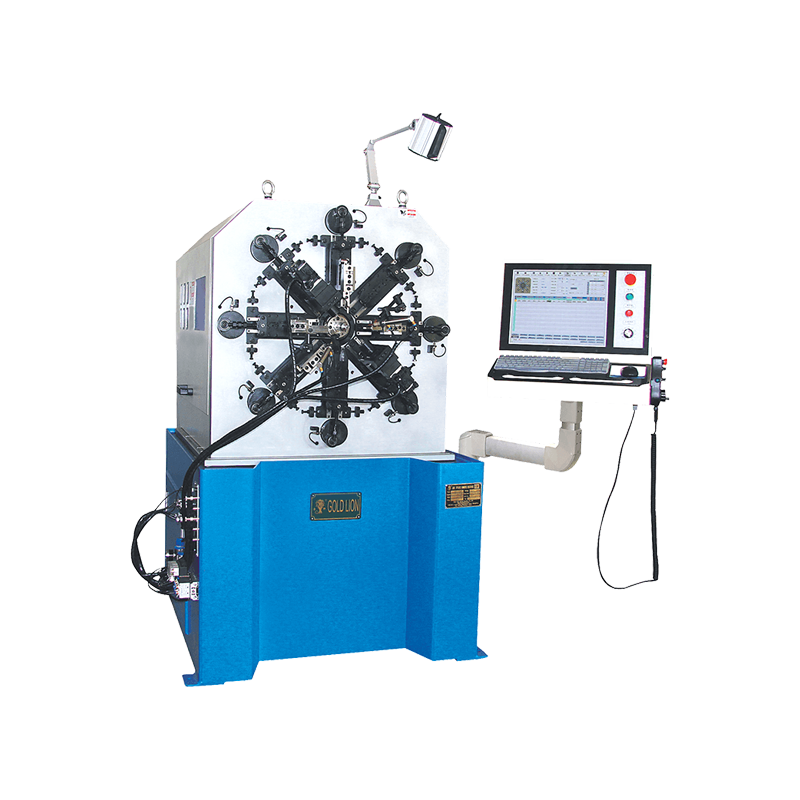

Camless CNC Spring Rotating Forming Machine

Model: CNC1226

Machine Features .

CNC1226 cam-less 12-axis CNC spring wire forming machine adopts twelve sets of servo motors, unique cam-

less and non-swing arm design,8 axis slide seat(standard linear guide),1 wire feed axis,1 quill axis,1 thread rotating axis,1 servo spinner axis (can add more axis: transverse moving cutter set, tension spring gripper). It can produce various compression spring, rectangular spring, scroll spring, tower spring, double torsion spring, snake spring, car seat spring, flat spring and other kinds of special-shaped spring, precise and accurate, adjust machine quickly, stable and reliable. Control system matching remote Internet interface, automatic imaging detection and alarm, easy to understand the program software, so that new workers can master programming easily. Hydraulic scissors are available.

Contact Us Video
Description

Specifcation

Model
CNC1226
wire Diameter(mm)
0.4-2.6
outside Diameter(mm)
Max-50
Feeding Length(mm)
0.01-9999.99
wire Feed Speed
0-130m/min
wire Feed Cam
2
Wire Feed Servo Moter
2.7KW
Sliding Seat Servo
1KWx8
zaxis Servo
1Kw
Wire Rotate Servo
2Kw
Spinner Servo
0.4KW
Power AC
380v-10%V 50Hz
Dimensions(LxWxH)(mm)
1500x1400×1650
Machine Weight
1300



Company
Company Company Profile

CHUANGYU MECHANICAL TECHNOLOGY CO.,LTD

As a famous OEM/ODM Camless CNC Spring Rotating Forming Machine suppliers and wholesale Camless CNC Spring Rotating Forming Machine company, Zhejiang Chuangyu Machinery Technology Co., Ltd. is currently a domestic professional manufacturer integrating R&D, production and sales of computer spring machines, a national high-tech enterprise, a drafting unit of the Chinese spring machinery industry standard, and a director unit of the China Spring Professional Association. The models cover more than 40 different types of spring machine equipment between 0.1-25mm, including computer compression spring machines, computer universal spring machines, camless machines, computer spring grinding machines, tempering furnaces, Camless CNC Spring Rotating Forming Machine and other products. The company has introduced multi-axis technology from Germany and Japan, and has cooperated with universities and research institutes to develop more than 30 patented technologies, continuously improving the degree of automation, and allowing users to make high-precision Camless CNC Spring Rotating Forming Machine with simple operations as much as possible, even when winding complex springs. One-time forming, no additional processing is required. Its products have the characteristics of fast adjustment, stable and reliable, and simple operation. The company has a number of advanced automated production lines, and the accuracy that can be achieved in the production process is at the first-class level in the industry. Efficient, fast, and orderly modern management, to minimize engineering errors, to ensure the excellent quality of Camless CNC Spring Rotating Forming Machine, and to provide customers with satisfactory services.
At present, our wholesale Camless CNC Spring Rotating Forming Machine are mainly exported to dozens of countries such as the United States, Russia, South Korea, Turkey, India, Brazil, Mexico, Argentina, Malaysia, Vietnam, South Africa, etc. Many of the cooperative customers are the largest local spring manufacturers. The company will always adhere to customer-centric, pursue the perfect combination of character and technology, and work together to innovate and create brilliance together.
