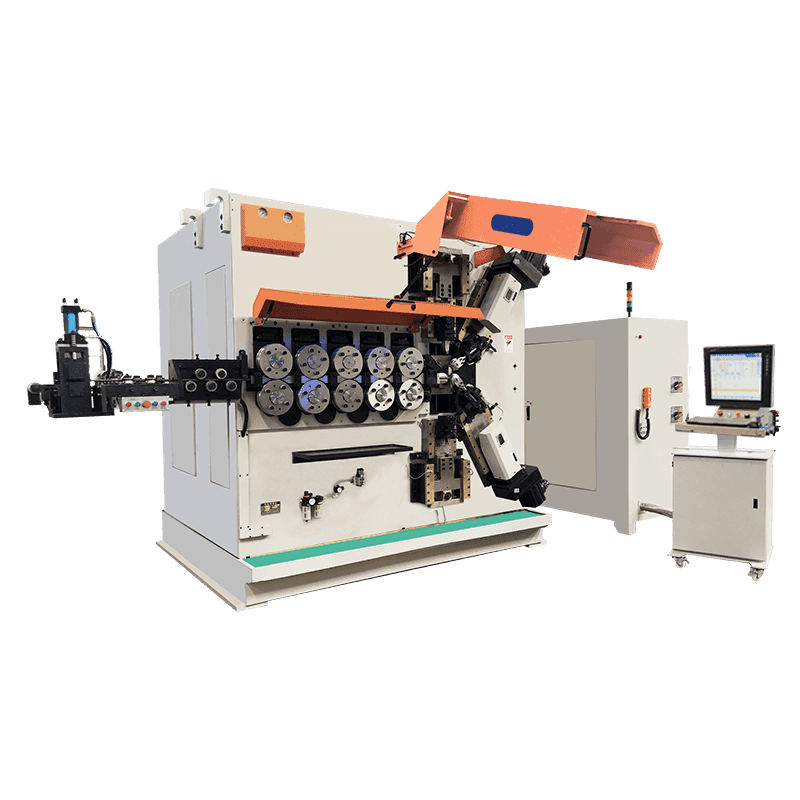

6 axis CNC spring making machine CK6160R

Model: CK6160R


Machine Features

CK6160R CNC spring machine has 6 sets of servo motors, completely abandoned the traditional 5 axis CAM reducing mechanism whose operation is cumbersome, and use the CNC system directly control the spring diameter and reducing diameter, new workers easy to learn and easy to understand. When Coiling 15mm oil tempering wire spring, five groups of wire feed rollers can ensure that the original shape of the wire precision is not crushed, enough wire feed traction to ensure the wire feed precision; Wire bending mechanism will speed up for the first circle of spring bending after change a new wire. The functions of straight cut, subtend cut, swing cut, twist cut are complete; Wire feeding mechanism has two speed transmission which are high speed and low speed; The control system matches the remote Internet interface, and the software has a graphical automatic programming template. After inputting the required value, the system will automatically generate a spring program, and the required coiled spring can be completed by slight modification. The machine can be equipped with imaging measuring instrument.

Contact Us Video
Description

Specifcation

Model CK6160R
Servo Axes 6
Wire Diameter 8.0-16.0
Outside Diameter 210
Wire Feed Lergth Limitless
Wire Feed Speed 37-100
Production Rate ≤90
Left or Right inding Rate 3
Wire Feed Cam 5
Wire Feed Axis 37
Diameter Axis 5.5×2
Pitch Axis 5.5
Upper Cutting Axis 25
Lower Cutting Axis 25
Serro Motor 103.5
Dimensions L(mm) 3650
W(mm) 2300
H(mm) 2800
Machine Weighing Weight 2800
