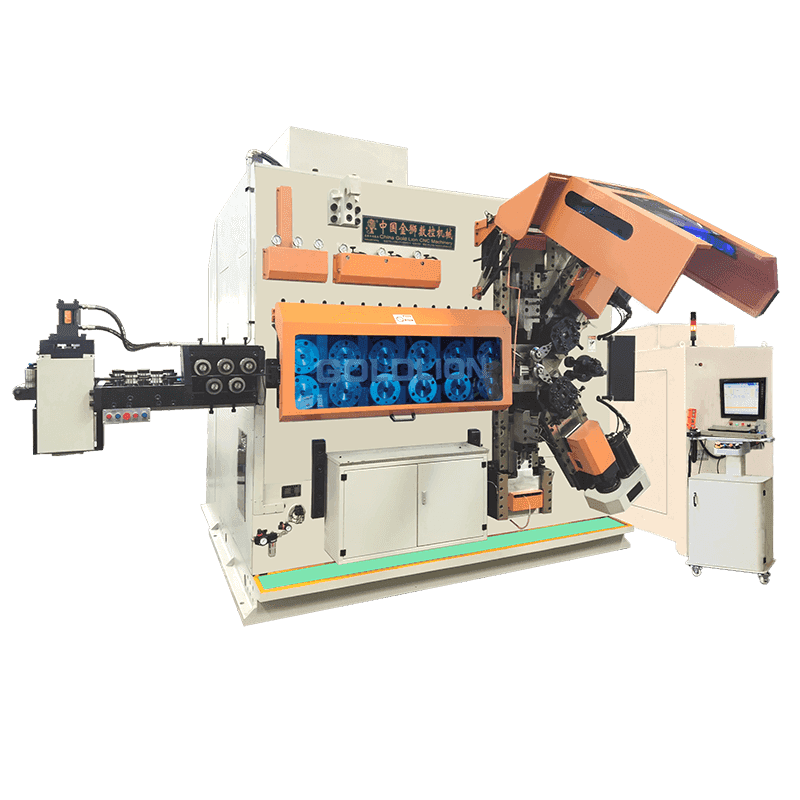

6 axis CNC spring making machine CK6230

Model: CK6230

6 axis CNC spring machine has 6 sets of servo motors, completely abandoned the traditional 5 axis CAM reducing mechanism whose operation is cumbersome, by the CNC system directly control the spring diameter and reducing diameter, new workers easy to learn and easy to understand. When coiling large wire diameter spring, six sets of wire feeding rollers make each wire feeding shaft bear less force, the original shape precision of steel wire is not crushed, enough wire feeding traction to ensure the wire feeding precision; The weight of itself is sufficient, the assist mandrel mechanism adopts the hydraulic locking function, and it is fixed by the hydraulic jacking after lifting, which is easy to operate, with small vibration and high incision precision; Wire bending mechanism will speed up for the first circle of spring bending after change a new wire. The functions of straight cut, subtend cut, swing cut, twist cut are complete; The control system matches the remote Internet interface, and the software has a graphical automatic programming template. After inputting the required value, the system will automatically generate a spring program, and the required coiled spring can be completed by slight modification. The machine can be equipped with imaging measuring instrument.

Contact Us Video
Description

Specifcation

Model
CK6230
Servo Axes
6
Wire Diameter
10-23
Outside Diameter
280
Wire Feed Lergth
Limitless
Wire Feed Speed
37-100
Production Rate
≤80
Left or Right Winding Rate
3
Wire Feed Cam
6
Wire Feed Axis
55
Diameter Axis
15x 2
Pitch. Axis
7
Upper Cutting Axis
30
Lower Cutting Axis
30
Serro Motor
152
Dimensions L (mm)
4650
W(mm)
3000
H (mm)
3360
Machine Weighing Weight
36800



Company
Company Company Profile

CHUANGYU MECHANICAL TECHNOLOGY CO.,LTD

As a famous OEM/ODM 6 axis CNC spring making machine CK6230 suppliers and wholesale 6 axis CNC spring making machine CK6230 company, Zhejiang Chuangyu Machinery Technology Co., Ltd. is currently a domestic professional manufacturer integrating R&D, production and sales of computer spring machines, a national high-tech enterprise, a drafting unit of the Chinese spring machinery industry standard, and a director unit of the China Spring Professional Association. The models cover more than 40 different types of spring machine equipment between 0.1-25mm, including computer compression spring machines, computer universal spring machines, camless machines, computer spring grinding machines, tempering furnaces, 6 axis CNC spring making machine CK6230 and other products. The company has introduced multi-axis technology from Germany and Japan, and has cooperated with universities and research institutes to develop more than 30 patented technologies, continuously improving the degree of automation, and allowing users to make high-precision 6 axis CNC spring making machine CK6230 with simple operations as much as possible, even when winding complex springs. One-time forming, no additional processing is required. Its products have the characteristics of fast adjustment, stable and reliable, and simple operation. The company has a number of advanced automated production lines, and the accuracy that can be achieved in the production process is at the first-class level in the industry. Efficient, fast, and orderly modern management, to minimize engineering errors, to ensure the excellent quality of 6 axis CNC spring making machine CK6230, and to provide customers with satisfactory services.
At present, our wholesale 6 axis CNC spring making machine CK6230 are mainly exported to dozens of countries such as the United States, Russia, South Korea, Turkey, India, Brazil, Mexico, Argentina, Malaysia, Vietnam, South Africa, etc. Many of the cooperative customers are the largest local spring manufacturers. The company will always adhere to customer-centric, pursue the perfect combination of character and technology, and work together to innovate and create brilliance together.
