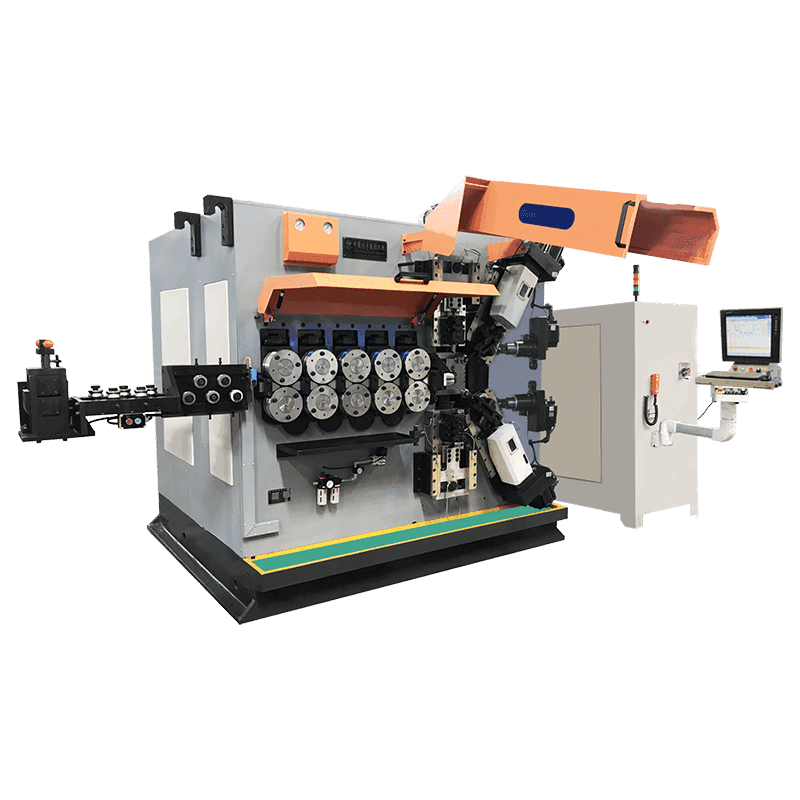

6 axis CNC spring making machine CK6120

Model: CK6120

Machine Features

6axis CNC spring machine has 6 sets of servo motors, completely abandoned the traditional 5 axis CAM reducing mechanism whose operation is cumbersome, by the CNC system directly control the spring diameter and reducing diameter, new workers easy to learn and easy to understand. It increases the number of wire feeding rollers, when coiling specified wire spring, five groups of wire feed rollers can ensure that the original shape of the wire precision is not crushed, enough wire feed traction to ensure the wire feed precision; The assist mandrel mechanism adopts the hydraulic locking function, and it is fixed by the hydraulic jacking after lifting, which is easy to operate, with small vibration and high incision precision; Wire bending mechanism will speed up for the first circle of spring bending after change a new wire. The functions of straight cut, subtend cut, swing cut, twist cut are complete; Wire feeding mechanism has two speed transmission which are high speed and low speed; The control system matches the remote Internet interface, and the software has a graphical automatic programming template. After inputting the required value, the system will automatically generate a spring program, and the required coiled spring can be completed by slight modification. The machine can be equipped with imaging measuring instrument.

Contact Us Video
Description

Specifcation

Model   CK6120
Servo Axes   6
wire Diameter   6.0-12.0
outside Diameter   150
Wire Feed Lergth   Limitless
Wire Feed Speed   37-140
Production Rate   ≤100
Left or Right inding Rate   3
Wire Feed Cam   5
Wire Feed Axis   30
Diameter Axis   4.5×2
Pitch Axis   4.4
Upper Cutting Axis   15
Lower Cutting Axis   15
Serro Motor   72
Dimensions L(mm) 3200
w(mm) 2250
H(mm) 2600
Machine Weighing Weight 15000
