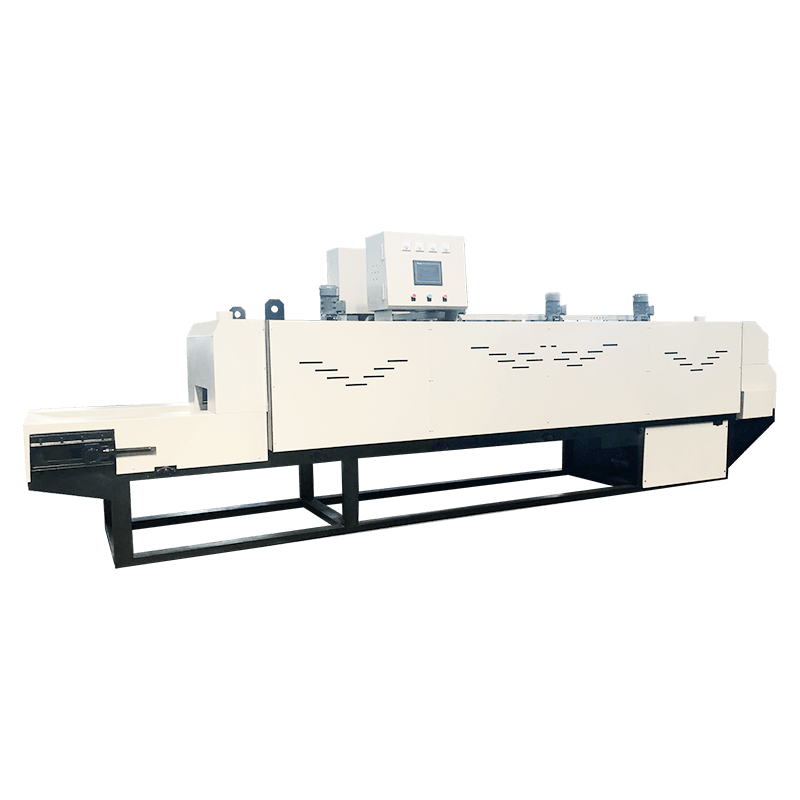

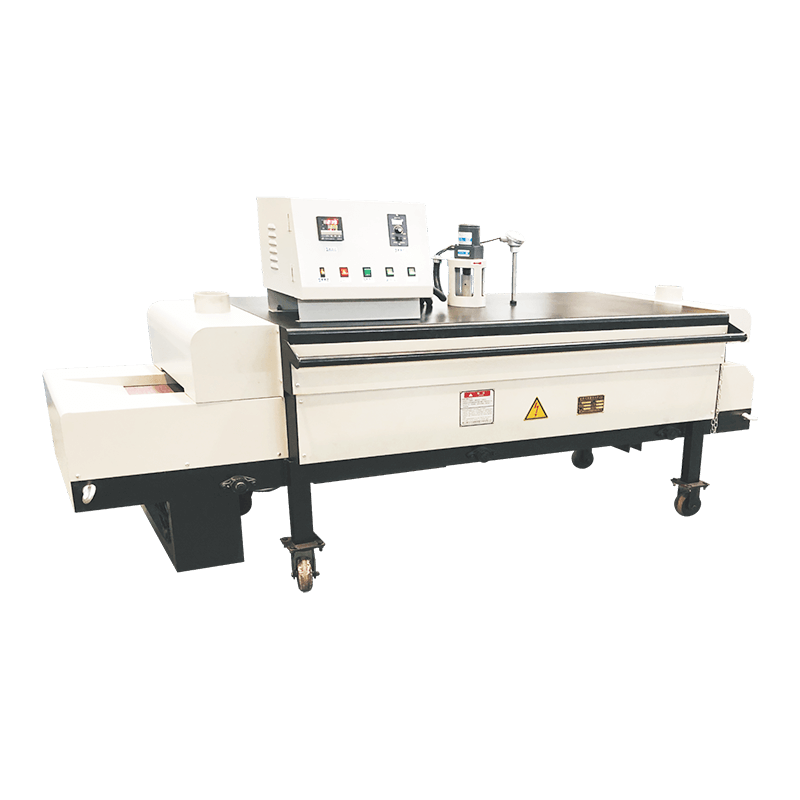

Rated Max.Furnace Temperature: 500℃ Furnace temperature control accuracy: soil 2 °c
The time for that the temperature rises from 20"C to 500"C is less than 20 minutes
Rated voltage: 38ov
Rated Max.Furnace Temperature: 500℃ Furnace temperature control accuracy: soil 2 °c
The time for that the temperature rises from 20"C to 500"C is less than 20 minutes
Rated voltage: 38ov
Specifcation
Model
|
Range of Tem pering Time (Min.)
|
Power(V)
|
Temperature Controller (unit)
|
Air agitator (unit)
|
Hearth Size(mm)'
|
Weight of
Furnace (kg) |
Processable
Wire Dia (mm) |
Overall Size
|
||||
L
|
W
|
H
|
L
|
W
|
H
|
|||||||
CJ210
|
4-40
|
8
|
1
|
1
|
1000
|
200
|
90
|
250
|
0.1-2.6
|
2000
|
800
|
1200
|
CJ315
|
4-40
|
16
|
1
|
1
|
1500
|
300
|
90
|
750
|
0.1-4
|
2500
|
900
|
1200
|
CJ420
|
5-50
|
26
|
2
|
2
|
2000
|
400
|
90
|
1000
|
0.5-6
|
3300
|
1000
|
1250
|
CJ530
|
6-60
|
40
|
3
|
3
|
3200
|
500
|
120
|
1800
|
0.5-8
|
5100
|
1000
|
1870
|
CJ540
|
6-60
|
48
|
4
|
4
|
4200
|
500
|
120
|
2200
|
0.5-12
|
6100
|
1000
|
1870
|
CJ740
|
6-60
|
65
|
4
|
4
|
4000
|
700
|
120
|
3000
|
1-12
|
6100
|
1200
|
2160
|
Note:(1) The tempering time, namely, the time the workpieces stay in thehearth, can be designed according to the de mand of client.
(2) Air agitator is hot air circulation fan.
(3) For large-size tempering furnace, electric motordrive can be designed for the rolling of large or small support mesh belt.
(4) The height of hearth can be customized.
(5) The outer case can be customized. Stainlesssteel decoration surface can be designed.
(6) The furnace temperature is 500 ℃ within which it is free to regulate, and the power consumption is about 30 percent with the constant temperature to achieve energy saving and environmental protection requirements.
(7) With the intelligent temperature controller which is able to endure high temperature and the temperature-keeping high-density fiber furnace lining inside, the consistency of the spring quality can be ensured.
