Camless CNC Spring Rotating Forming Machine CNC1260

Model: CNC1260

Machine Features

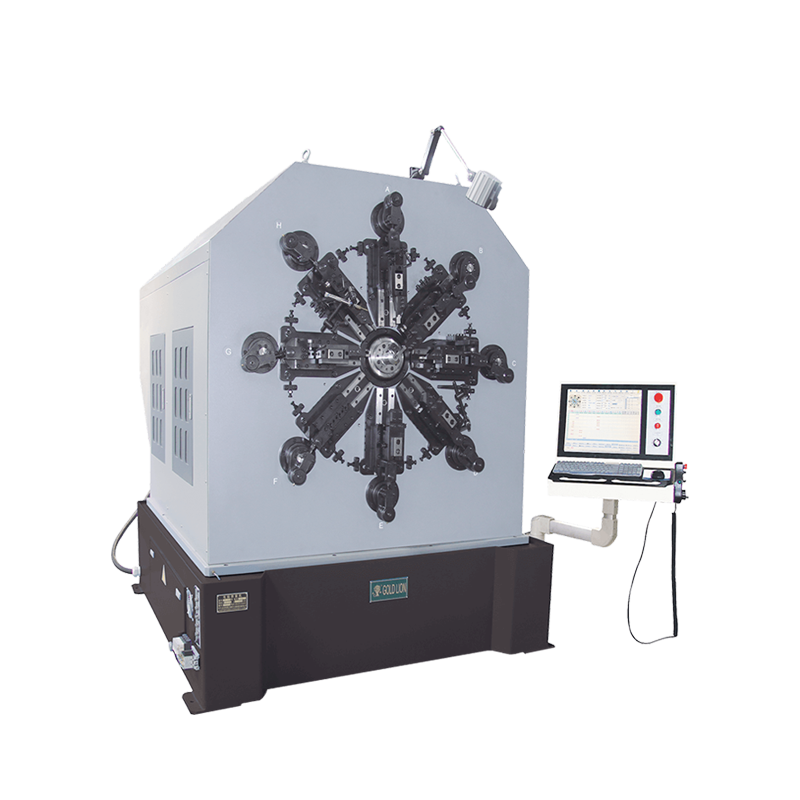

CNC1260 cam-less 12-axis CNC spring wire forming machine adopts twelve sets of servo motors, unique cam-

less and non-swing arm design,8 axis slide seat(standard linear guide),1 wire feed axis,1 quill axis,1 thread rotating axis,1 servo spinner axis (can add more axis: transverse moving cutter set, tension spring gripper). It can produce various compression spring, rectangular spring, scroll spring, tower spring, double torsion spring, snake spring, car seat spring, flat spring and other kinds of special-shaped spring, precise and accurate, adjust machine quickly, stable and reliable. Control system matching remote Internet interface, automatic imaging detection and alarm, easy to understand the program software, so that new workers can master programming easily. Hydraulic scissors are available.

Contact Us Video
Description

Specifcation

Model
CNC1260
Wire Diameter(mm)
2.0-6.0
Outside Diameter(mm)
Max-4100
Feeding Length(mm)
0.01- 9999.99
wire Feed Speed
0-70m/min
wWire Feed Cam
4
Wire Feed Servo Moter
15KW
Sliding Seat Servo
3.8KWx8
Zaxis Servo
1.5KW
Wire Rotate Servo
5.5KW
Spinner Servo
1.5KW
Power AC
380v-109%V 50Hz
Dimensions(LxWxH)(mm)
2550x2450x2380
Machine Weight
7200
